CCD camera module, b/w with infrared LED's. For videointercom digital FN4000 systems. It allows, during the installation, to be adjusted +/-30° horizontal and vertical. It is of Mody push button series which accessories can be used with this camera.
New-concept video server to control up to 4 cameras (also existing) over IP network. Based on MPEG4 compression system it allows to get video signals at 704x576 pixel at 50FPS or 352x288 pixel at 100FPS. 1 audio input/output, USB port for local recording/backup, alarm input/output: 4/1, RS-485 port for Speed dome cameras control. Thanks to extreme flexibility of its RMS software (up to 16 channels) and the system's modular concept, it allows to convert analog systems in digital one suitable for IP networks, centralizing the control system in one or more stations. Upon request it's also available the CMS software to integrate video streaming from GQVR DVR's without any limit in the number of channels and devices controlled. Product not available any more.
CCD camera module, colour with infrared LED's. For videointercom systems with coax. cable. It allows, during the installation, to be adjusted +/-30° horizontal and vertical. It is of Mody push button series which accessories can be used with this camera.

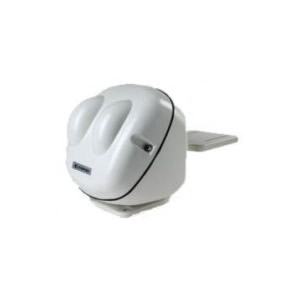

Sweep in aluminium for external installation (IP66). Horizontal velocity: 6°/sec (0°-330°), vertical velocity: 3°/sec (0°-360°). Load capacity 12 kg. Totally controlled by AT4 keypad. Product not available any more.

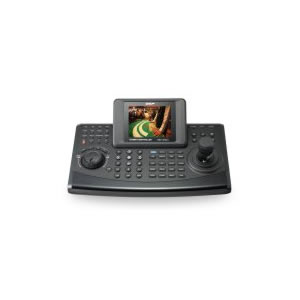

This multiprotocol system controller has been designed to be full compatible with digital video recording systems (GXVR and GQVR series), Cyber Scan speed dome cameras and GMAX series Matrix systems. It allows to make a complete control station to manage up to 999 cameras, 120 monitor and 255 DVR. It is characterized by the built-in 5" TFT LCD monitor to display a video signal together with OSD information for devices programming and control, the JOG/SHUTTLE and the 3-axis joystick allow to easily manage all DVR and cameras functions. It is provided with junction box for multi keyboard systems and data transmission over RS-485/422 lines. Product no more available.
CCD camera module, b/w with infrared LED's. For 4+1 videointercom systems without coax. cable. It allows, during the installation, to be adjusted +/-30° horizontal and vertical. It is of Mody push button series which accessories can be used with this camera.

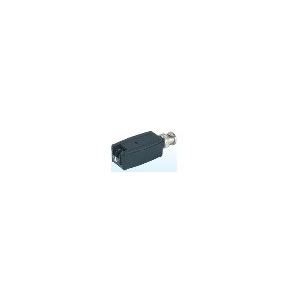

Passive coax to UTP converter. It allows to convert unbalanced video over coaxial cable to a balanced one to be transmitted over UTP cables (as transmitter). It can be used also as receiver to convert UTP signal to coaxial. According to cable performances up to 600m with B/W signal and 400m with color signal can be covered. It is equipped with male BNC connector so it can be installed on the rear of the camera or monitor, while terminal screw are provided for UTP cable. Product not available any more.
