XN100

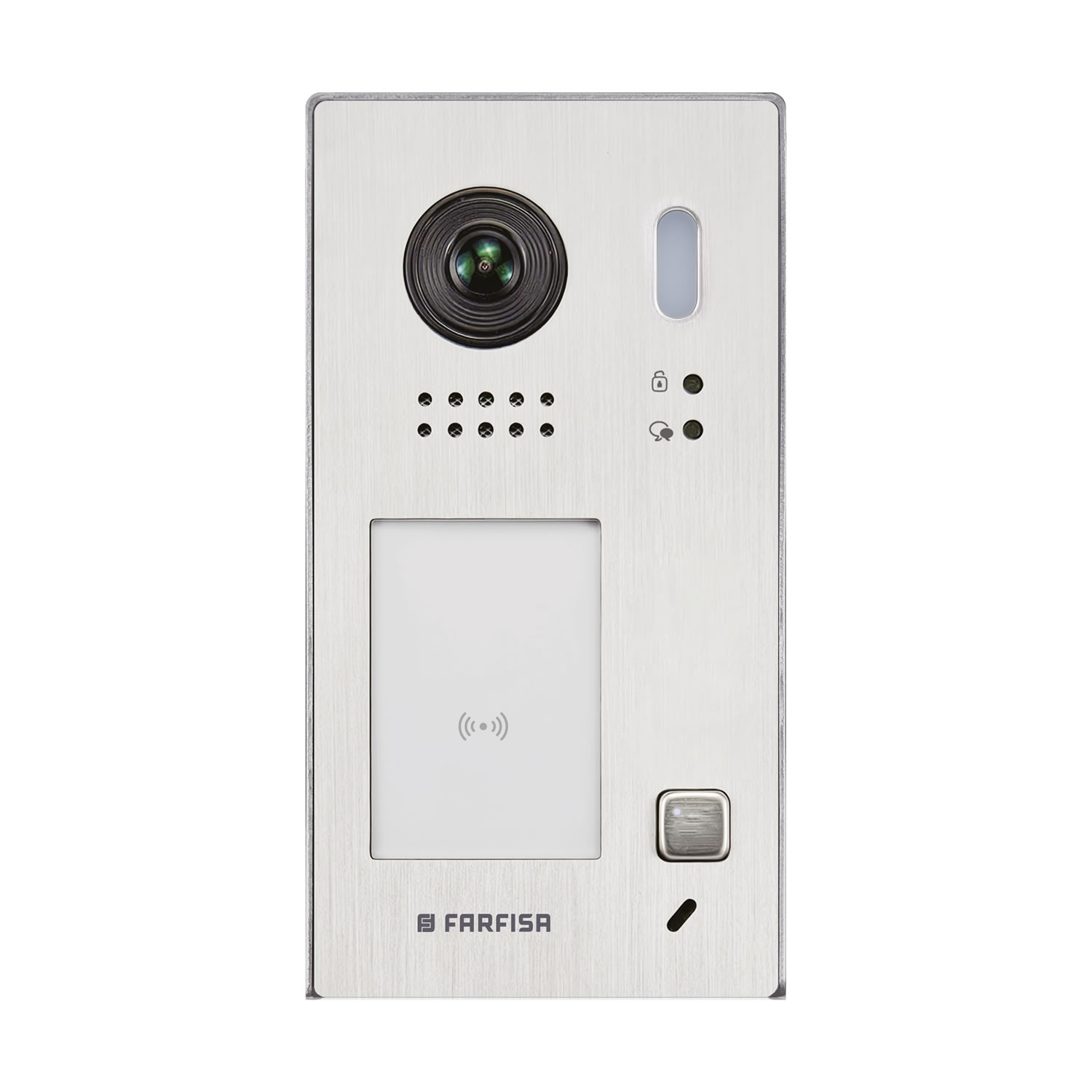

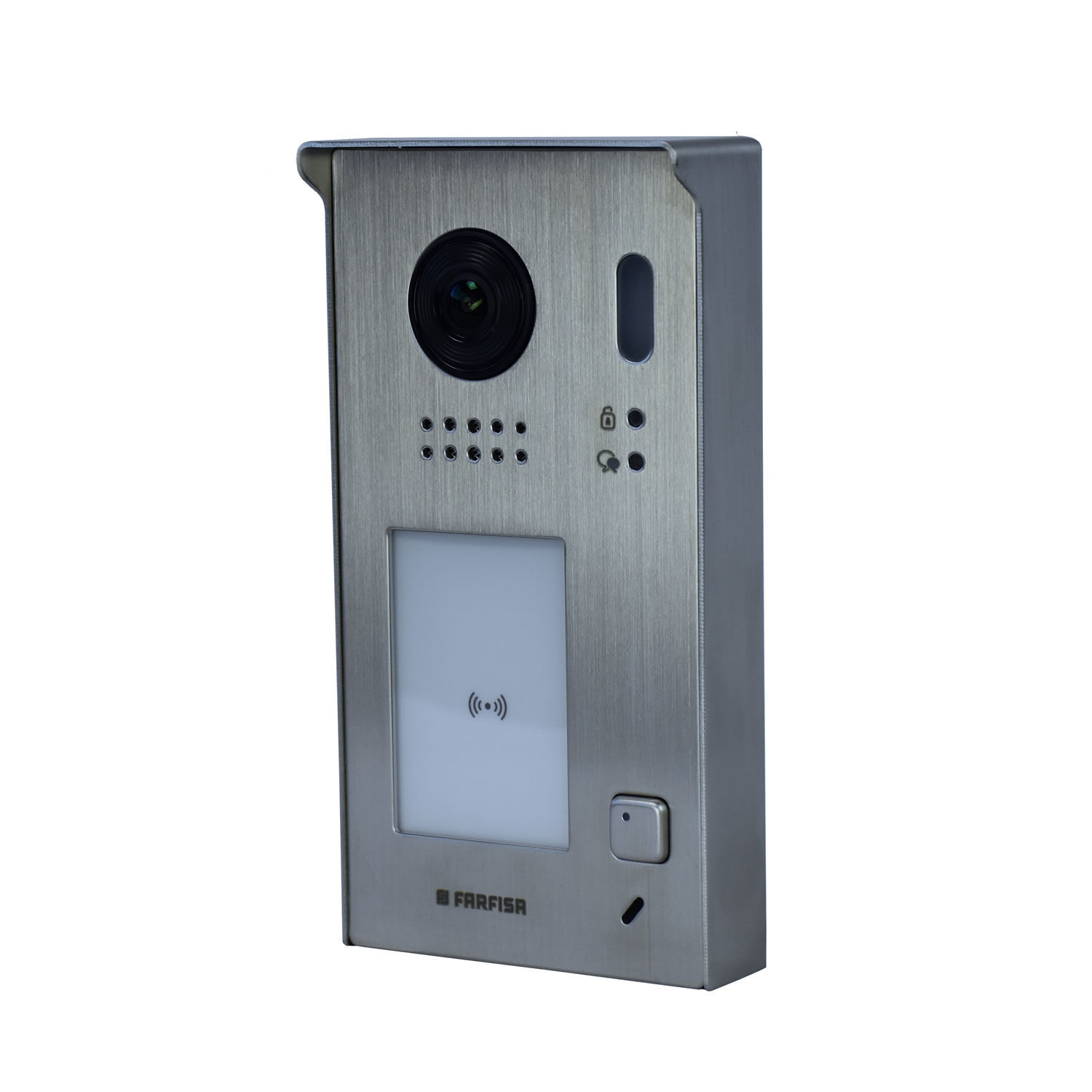

Xentry RFID door station - XN100
1-way videokit 2 wires devlopped on IP, Xentry series. Composed by: external door station art. XN100 with 1 call button and RFID/MIFARE reader + videointercom art. XN700 + power supply art. PRSXN. Extendable up to 4 external door stations, HD video signal, full duplex communication. Simplified set up and installation. Ideal for existing cabling and retrofitting.
DOWNLOAD
FOLLETO
DOWNLOAD
DOWNLOAD
VIDEO
Configuration of an additional door station
main
characteristics
material: 304 stainless steel
colour: metal grey
button number: 1
IP degree: IP54
IK degree: IK07
working temperature range: 0 / + 40 °c
camera type: 2MP
lens: 2MP
functions
RFID: yes
technical
features
supply voltage: from the bus
max current consumption: 0.17 A
dimensions
height cm. 17.8
width cm. 9.4
depth cm. 3.78
