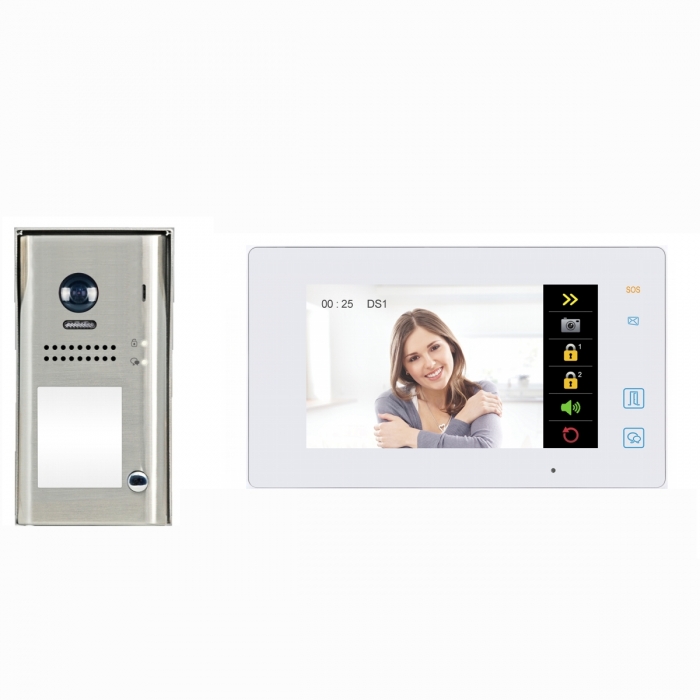

Two-ways video intercom kit based on 2 wires, not polarized technology. Wi-Fi connected. Ready and complete to install, made up of: monitor, entry door station, power supply.

Monitor: LCD-TFT 7", white color, hands free with touch screen feature and soft touch buttons. It delivers good audio quality and very user friendly operation. The monitor and system programming can be done by multi language OSD menu with icons which allows also to program date and time, select call chime for door bell, external call and intercommunication among different tones and choose different volumes for the call ring. Moreover the system can automatically record a picture of the caller.

Entry door station: robust and compact, only 90mm wide: special care has been put on the design to get a modern appeal and good protection against water (IP45); it is suitable for surface mounting and the name plate is even white back lighted.

It can also drive up to 1 DC or AC door lock (a second door lock can be activated by SER01). The system power supply is a DIN rail type (included).

It is possible to install an additional monitor into the same apartment ("slave" art. SEM7ME) and the intercommunicating facility also available. Other accessories: wall bracket for monitor, sun shield for external station and fixing accessories. Kit composition: Dual buttons door station (1), 7" hands free monitor art. SEM7MEW  (1), power supply (1). This kit can become 2-family by adding a "master" art. SEM7MEW monitor.

READ
instruction manual

INFO
demander des informations

VIEW
dynamic pdf



2 WIRE VIDEO DOOR PHONE KIT - 1SEK/MEW


DOWNLOAD

CERTIFICATIONS
DOWNLOAD
Call forwarding to mobile phone guide
DOWNLOAD

main
characteristics

material: Zinc alloy
mounting
wall mounting: Surface
colour: White monitor
hand-free: Yes
display: 7"
button number: 1
angle of view: 110°

functions

video memory: Yes

technical
features

supply voltage: 110-230Vac
max current consumption: 36W

dimensions

height cm. 17,6
width cm. 9
depth cm. 2,7
