Kit with MyCom technology Alba 4G composed by: basic door panel module AB4G, access control keypad PD2100AB, Alba accessories: module frame AB72, back box SC2, rain shelter AB92, button cover AB20, button 2xAB21, front frame AB62 and power supply PRS210.

Note: for North and Central America, please ask Farfisa Technical Service Department for the appropriate item code.

Kit 1MCAB4 includes all necessary material for an intercom installation 4G/GSM technology up to 4 calls. Articles inside are AB4G door panel, SC1 back box and PRS210 power supply together with AB61 front frame and AB71 module frame and AB20 and 2 pcs AB21. Flush mounting,

It requires a nano SIM only (Nano SIM, LTE, VoLTE), to make calls by using GSM net. Door panel can be further extended by using button CT2138AB modules or digital keypad PD2100AB module, up to max 200 calls. Each call button can be associated to up to 3 different phone numbers to be called in sequence. The item is provided with 2 relays that can be activated independentely and 2 inputs that can be used as alarm, o for other functions. CLIP function allows to activate one of the relays by sending the call to the door panel. The item can be programmed through the web cloud interface, through app or by connecting to a PC and using a software that can be downloaded free from the website, or through text command via SMS.

Note: for North and Central America please ask Farfisa Technical Service Department for the appropriate item code.

Kit 1MCABS4 includes all necessary material for an intercom installation 4G/GSM technology, up to 4 calls. Articles inside are AB4G door panel, AB91 rain shelter and PRS210 power supply together with AB61 and AB71 front and module frames and AB20 and 2 AB21. Surface mounting.

It requires a nano SIM only (Nano SIM, LTE, VoLTE), to make calls by using GSM net. Door panel can be further extended by using button CT2138AB modules or digital keypad PD2100AB module, up to max 200 calls. Each call button can be associated to up to 3 different phone numbers to be called in sequence. The item is provided with 2 relays that can be activated independentely and 2 inputs that can be used as alarm, o for other functions. CLIP function allows to activate one of the relays by sending the call to the door panel. The item can be programmed through the web cloud interface, through app or by connecting to a PC and using a software that can be downloaded free from the website, or through text command via SMS.

Note: for North and Central America please ask Farfisa Technical Service Department for the appropriate item code.

External antenna, complete with coaxial cable and proper connector in MyCom systems (GSM 4G), provided with wall bracket in metal. It is useful in all the situations when the signal is weak.

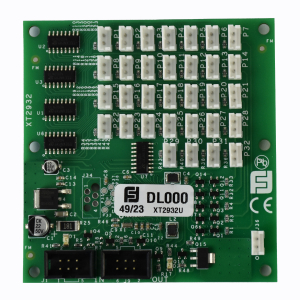

Interface board that allows to connect any analog entry door panel to Alba or Hero modules. Each board allows to connect max 32 buttons and it is possible to connect a further board in cascade.

Main module for entry door panel in Mycom systems with 4G technology. In Alba range, it works with Alba installation elements. Standalone or in composition with expansion modules, if installed with power supply only, it allows a complete and reliable system for access control with no cables and no distance limits.

Audio module on Alba range with electrical door speaker integrated in 4G technology and ready for max 4 calls in double button mode. The call is made by the external panel by using the mobile net (a nano SIM card is necessary but not included) and can be sent to max 3 fixed or mobile telephone numbers, programmable in sequence for each call button. Up to 2 ouputs through the provided relays can be managed separately, for example for a pedestrian door and a gate for vehicles. This item is the ideal solution for an installation without distance limit between external panel and internal station, absolutely without cabling. It can be connected through Alba bus to CT2138AB button module, with total 68 buttons or through digital keypad PD2100AB and/or display DD2140AB for up to 200 users. 2 alarm entrances. Function "calling number recognition for door lock opening (CLIP) through call or SMS for all the users already inside Conctacts plus further 200 telephone numbers, alarm management and NAC function (signal for attempted use clip function by a non-authorized user).

Programming is made through web interface, app, PC with MyComManager software or SMS. Lighting signals for conversation status indications, relay activation, subscription to telephone net, signal intensity. To be completed with AB20 or AB21, depending on the number of calls to use.

Hand-free vidoeintercom with LCD 7" screen for IP EVO systems, it allows to add a phisical videointercom station to the system. Provided with 6 soft touch buttons and backlit icons.

EVO IP technology allows the management of up to 8 devices for each residential unit (including one or more SE4000 video intercoms, smartphones, Alexa), the display and reception of calls from multiple external door panels, simultaneous audio/video calls, bidirectional communication and control of all door panel outputs.

Ethernet connection or WiFi, automatic connection to Farfsa cloud: The device is linked to the residential unit by simply scanning a QR code.

Provided with dedicated chip for high level of IT security system.

One user licence for a residential unit iis ncluded.

Power via PoE or 13 Vac.
