Renovation of a building on the important artery of Castellammare di Stabia (NA), structured on 2 risers with an external unit and 45 internal units. Duo System solution to switch easily and effectively from an intercom system (another brand) to audio-video, without building works on the wall of the external unit.
HOW WE WORK

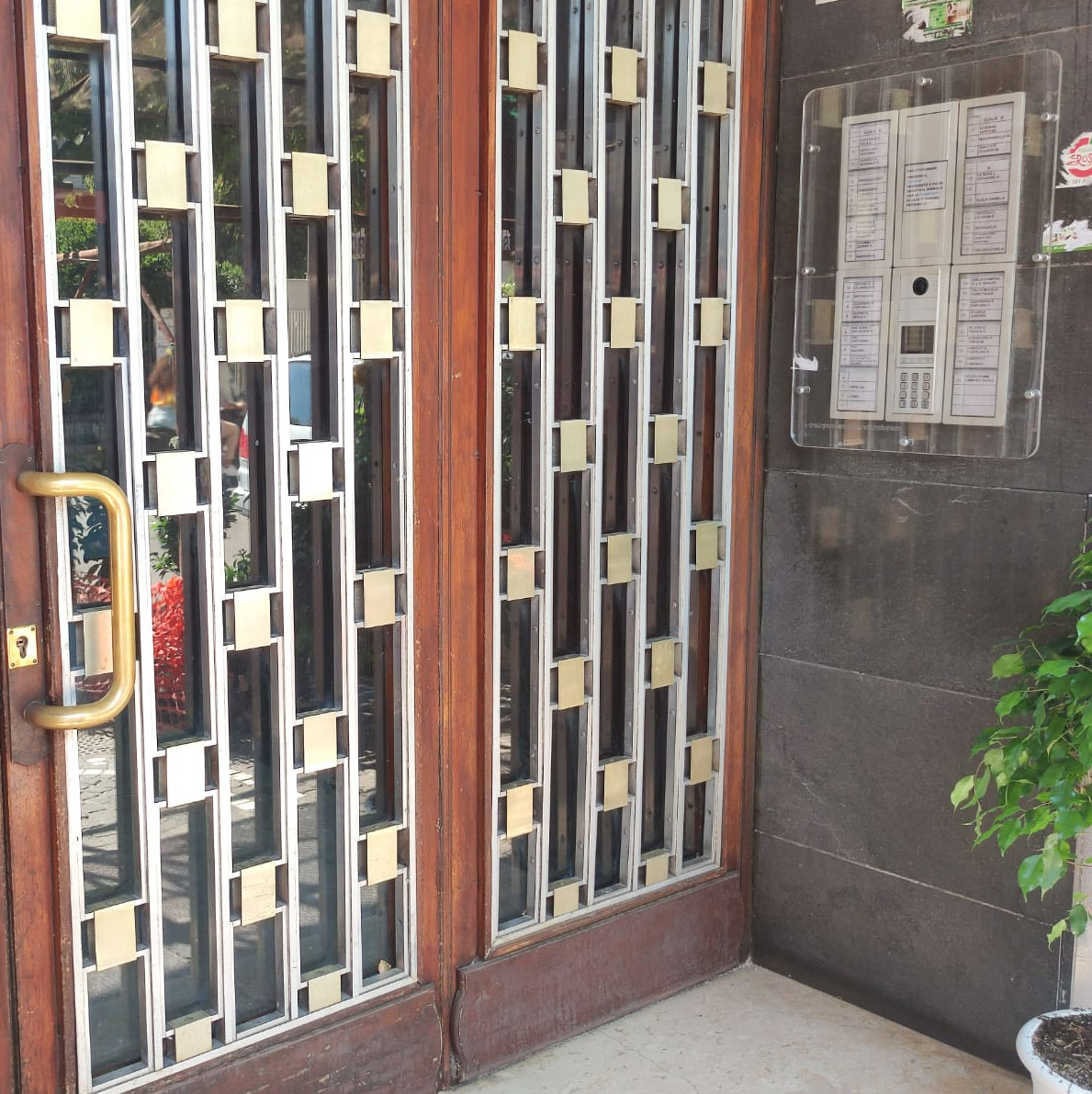

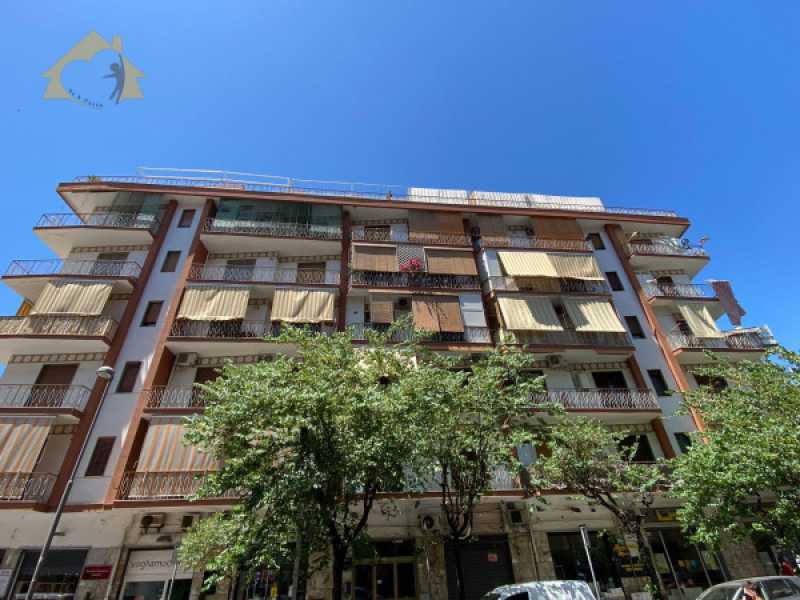

The project consists of the renovation of the home communication system of an apartment building. The customer requests the upgrade of the intercom to video intercom system, expressly asking to avoid breaking into the wall where the external unit is mounted, as it is covered in marble. It is an 11-floor condominium, structured on 2 risers with an external unit and 45 users, eachone with 1 video and 1 intercom, therefore a total of 90 internal units.

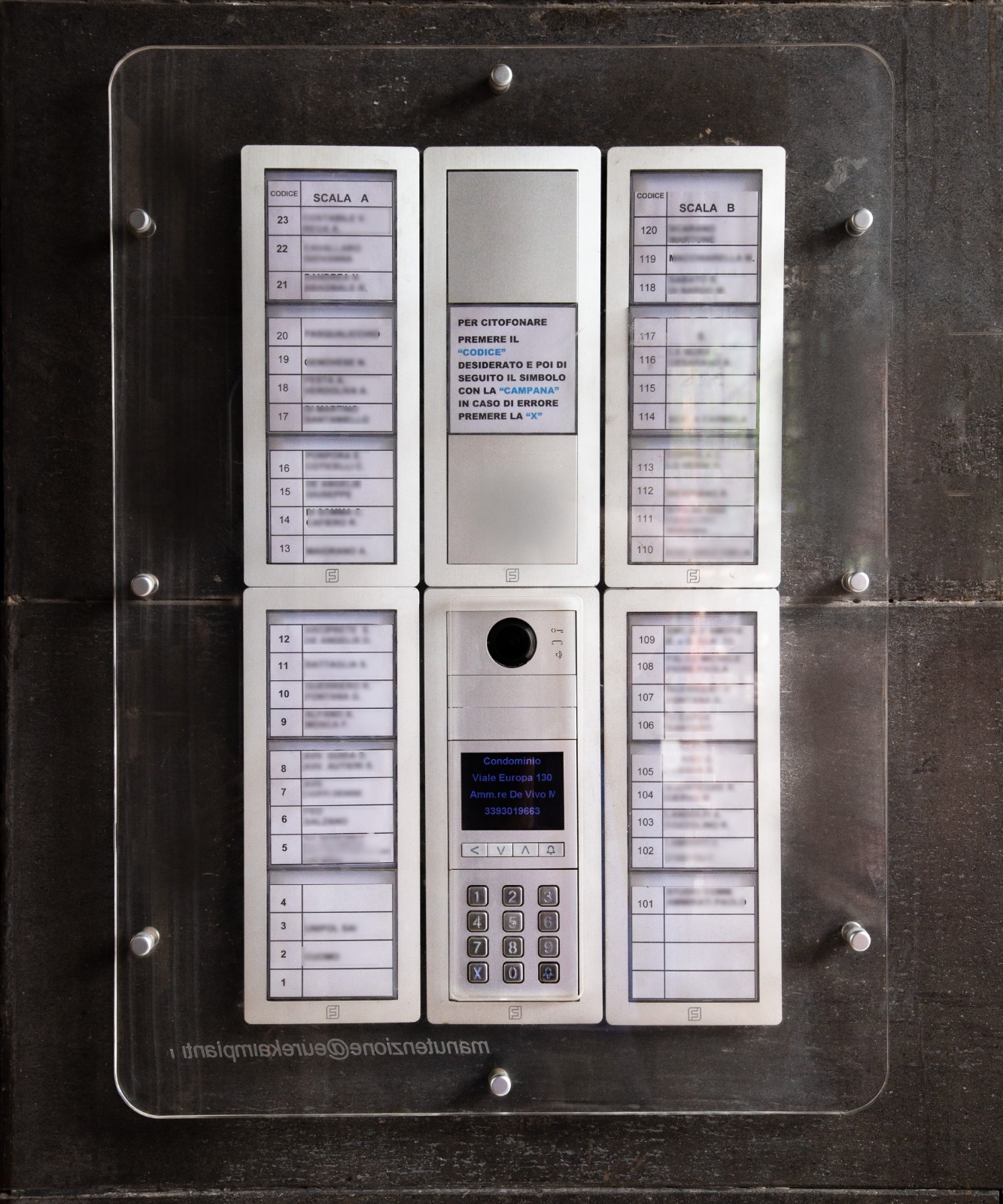

The installer and the on-site technical assistance analyzed the project and the technical specifications together with the company (risers, distance, number of users, compatibility with the burglary dimensions of the previous external unit, facilities to offer to the end user). In fact, the Alba composition, also recommended by the pre-sales technical service, is perfectly compatible with the pre-existing system push-button panel.

solution

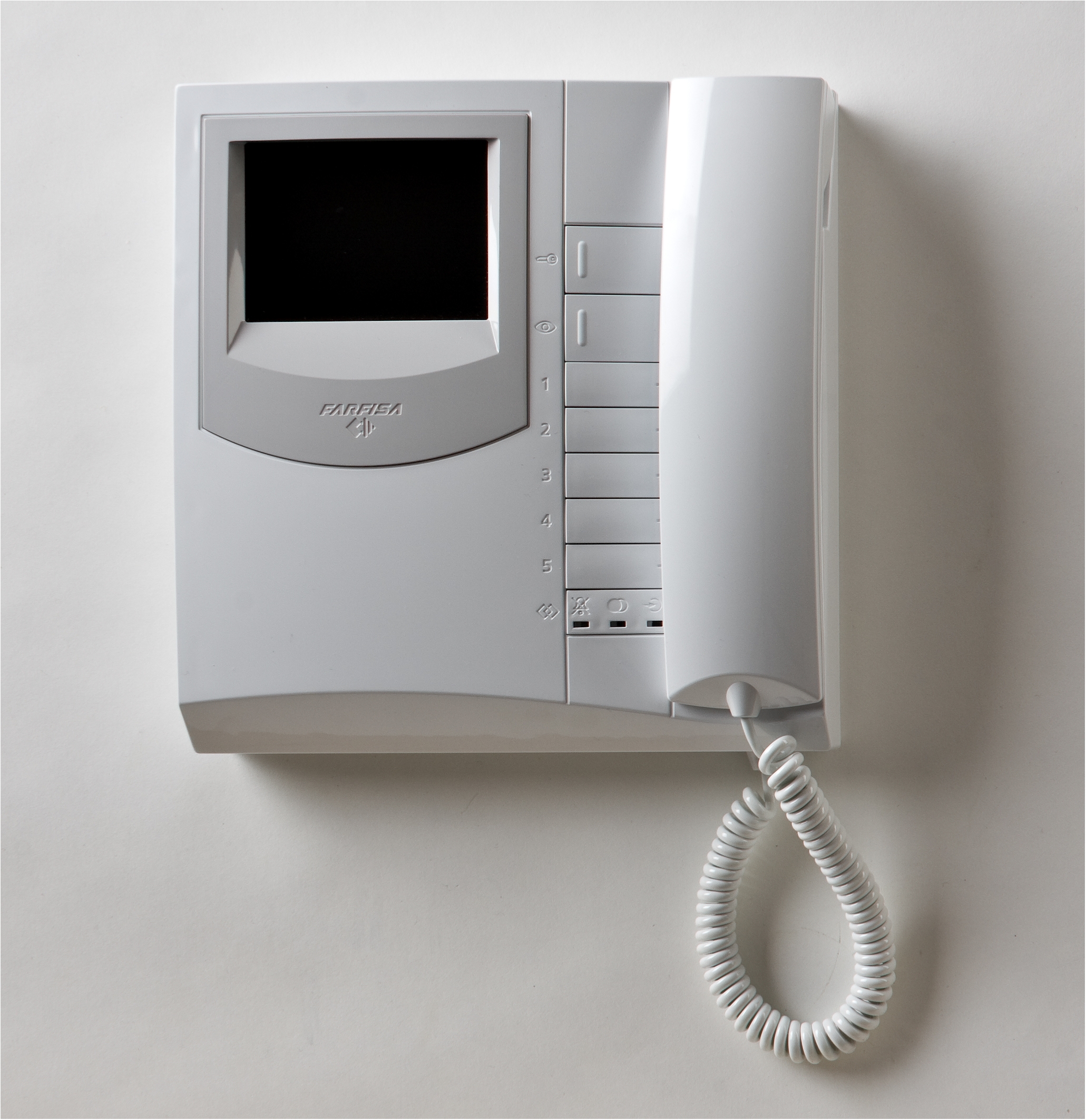

The Duo system allows various advantages for both the installer and the end user. First of all, it satisfactorily responds to the request to avoid masonry work on the wall for the external unit. It also allows simple wiring of only 2 non-polarized cables where previously there were 5 and did not guarantee the performance of now. It is also important to allow integration to future services for any next new requests and Duo System allows all this (for example through a possible gateway module for video call service on smartphones even for just one user or a few). Furthermore, it offers the end user ease of use both in the internal call phase through the display module with automatic search keys, and the possibility of writing a courtesy message on the display module (here the data of the condominium administrator) as well as the security of access control via digital keypad module.
