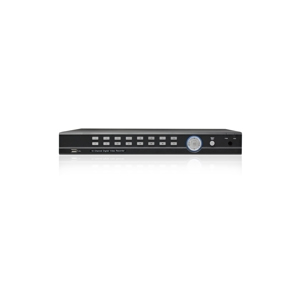

H-264-based 16ch digital video recorder. It has 1 BNC monitor, 1 VGA and 1 HDMI video outputs. It allows video recording at CIF/HD1/D1 resolution and also at the new wide 960H mode, maximum recording frame rate is 25Fps per channel (CIF); recording mode can be set on Motion Detection triggering or continuous / schedule. It supports 2 internal SATA HDD (up to 4 TB capacity each) and external backup via USB port. Thanks to its internal web page (Internet Explorer browser supported) and compatibility with most popular 3G mobile devices (such as Android, Blackberry, Symbian, Windows Mobile and I-Phone) even the remote control can be made by really everyone. Moreover, the user friendly graphical interface makes easier the installation while the highly interesting quality/price ratio suggest to use this item in every applications where simple using and most up-to-date features are required. USB mouse and remote control are included in this product.

Stabilised power supply 230-127 Vac, 48VA with outputs protected against overloading and short circuits, able to supply power to 1 camera unit and 2 flat or LCD videointercoms connected in parallel, or 1 camera unit and 1 videointercom (not flat). Output voltages: 13Vac and 21Vdc. Certification: VDE.

Audio-video timer. Joint to 1281 stabilised power supply, allows operation in timer mode (50 seconds) of a videointercom system, automatic deletion at the end of the conversation and the switching on of one videointercom at a time. By inserting on the specific connector art. 1443 intercommunicating module, the intercommunicating function with privacy with the door station is activated. 18-28Vdc, 8 Vdc e 13 Vac is supplied.
