One-way videointercom kit with coaxial cable technology and electronic call. Composed by b/w KM8800W videointercom of Compact series, wall bracket for the monitor, power supply and Mody push button panel.

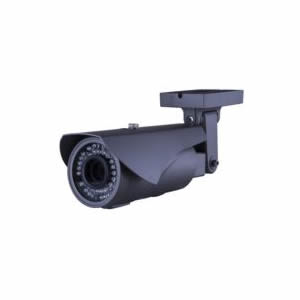

Compact Day&Night camera with CMOS DIS 1/3" sensor, with IR-cut filter removable, 700 tvl resolution. IR illuminating system with 42 IR leds (range about 20m), CDS cell and housing for outdoor installation (IP66). It is equipped also with 2.8-12mm varifocal lens adjustable without dismounting the camera. Bracket (3 axis adjustable) with cable management system included. Product not available any more.
4- or 7- exchange selector for Duo System. It allows to select of max 4 or 7 surveillance cameras and/or the activation of other services.
Wall bracket for PV1260 videointercom. It allows for the connection also of additional buttons and/or secondary call tone.
Power supply with timer integrated 230-127Vac/48VA. Outputs protected against overloading and short cicuits. Provided with note generator for video intercom systems with electronic call for Studio and Compact line. Output voltage: 13 Vac and 21 Vdc. Certification VDE.8A modules on DIN bar.
Color high resolution camera hidden in PIR sensor (non working). The small dimensions and the pin-hole lens make it suitable for every situation where particular discretion is required during surveillance. Bracket included. Product available until stock lasts.
Stand Alone poximity reader, RFID unit, that can be inserted in MODY door station composition. Ideal for acces control applications, it uses all the fittings of MODY push button panels for surface or flush mounting, it is possible to combine in Video Intercom installations. It is provided with 2 monostable relays which timing is settable according to the features of the connected device. The programming is made through master card managed by display and 4 LED's on the front of the reader that indicate also the operation status and data insertion of the enabled cards. Thanks to the 500-card memory capacity, it is particularly indicated for the access managment in one-family houses, large buildings or communities. It is provided with 4 cards + 1 Master Card.Also EXIT button facility for first realy is available as standard. The system is completed with passive transponders for the activation. THE PICTURE ABOVE SHOWS INSTALLATION WITH MODULE MD91. Product available until stock lasts.
